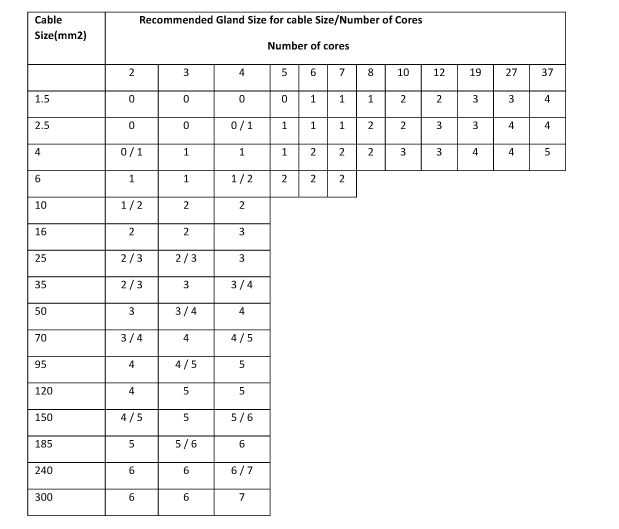

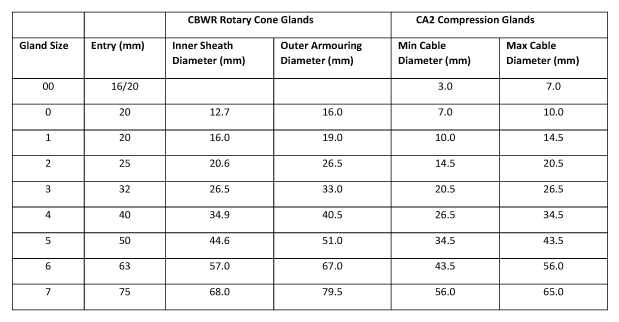

We cannot guarantee that this chart is accurate for every make of cable, as each cable manufacturer may have varying cable dimensions. Hence the chart will indicate that borderline cable sizes may use either of the two gland sizes shown.

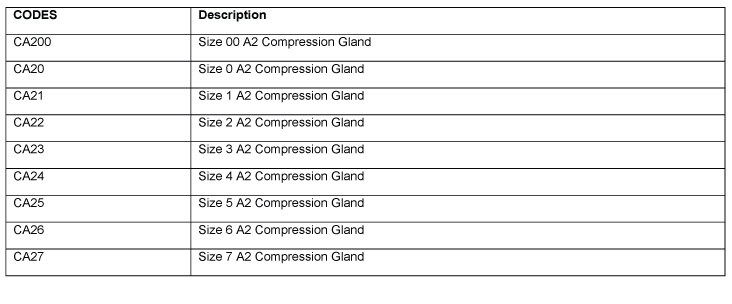

THERMOFIX CA2 COMPRESSION GLANDS
Thermofix’s CA2 Nickel plated brass cable glands can be used indoors or outdoors, on all “unarmoured” cable.
Size: 00 – 7

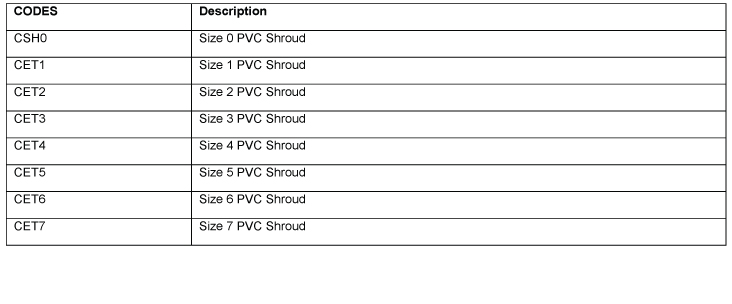

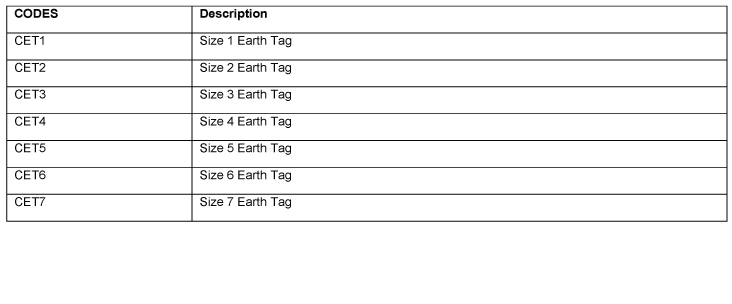

Accessories: Shrouds and Earth Tags
Standards: Manufactured in accordance with
SANS/SABS 1213

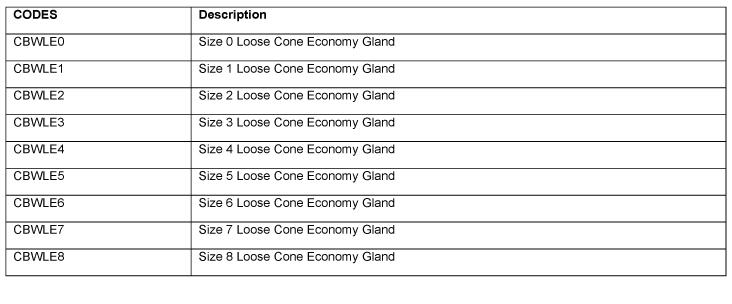

THERMOFIX CBWLE – Loose Cone Economy Cable Glands
Thermofix’s CBWLE Nickel plated brass cable glands. As a cost effective solution, these glands can be used indoors or outdoors, to provide clamping of the armouring ensuring earth continuity and to provide mechanical retention of the cable
Size: 0 - 8
Accessories: Shrouds and Earth Tags
Standards: Manufactured in accordance with
SANS/SABS 1213

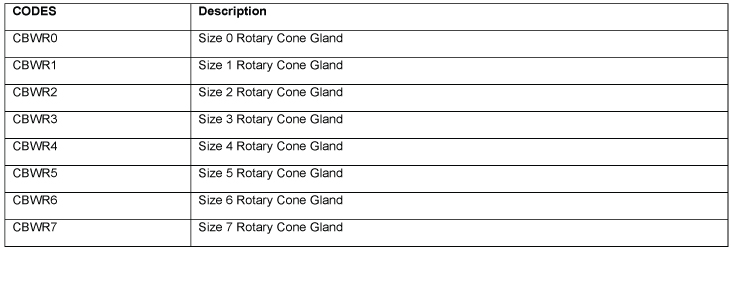

THERMOFIX CBWR – Rotary Cone Cable Glands
Thermofix’s CBWR rotary cone brass cable glands have a high quality Nickel plating. These glands can be used indoors or outdoors, to provide clamping of the armouring ensuring earth continuity and to provide mechanical retention of the cable.
