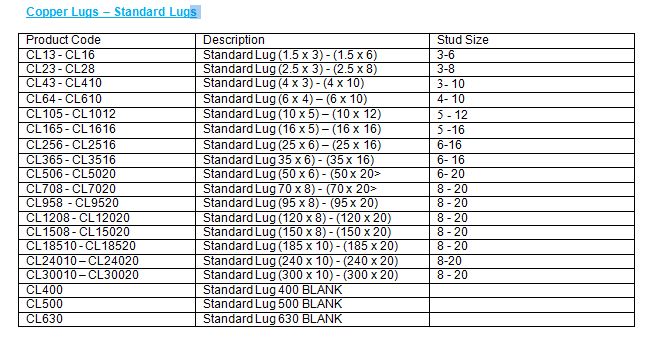

Thermofix’s Copper Lugs are made from 99.9% + cu high conductivity annealed copper which gives the best electrical properties possible. They are capable of withstanding a continuous operating temperature of 155°C, which is well above the temperature properties of most lugs. The lugs have a viewing window to check conductor location from 1.5mm² to 185mm². From 240mm² up the lugs have no window, because they are generally used outdoors. Conformant Standards: Sans IEC 1238-1: 1993
Thermofix’s Copper Ferrules are made from 99.9%+ cu IACS high conductivity copper which gives the best electrical properties possible. Because the copper is oxygen free, Thermofix's Ferrules are capable of withstanding a continuous operating temperature of 155°C, which is well above normal capabilities of copper ferrules
Conformant Standards: SANS IEC 1238-1: 1993

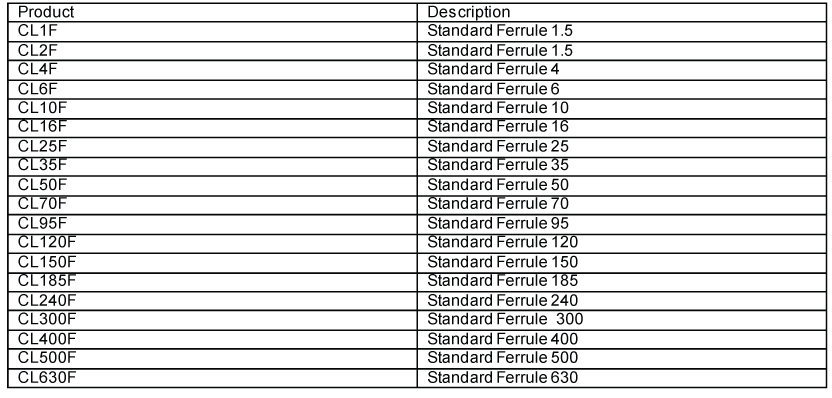

Copper ferrules – Standard Range
XLPE Copper Lugs
Thermofix’s XLPE heavy duty Copper Lugs are specifically manufactured for use on compacted XLPE Copper cable. They are made from 99.9%+ cu high conductivity annealed copper which gives the best electrical properties possible. They are capable of withstanding a continuous operating temperature of 155°C, which is well above the temperature properties of most lugs. The lugs have no window, because they are generally used outdoors.
XLPE Copper Ferrules
Thermofix’s XLPE heavy duty copper ferrules are specifically manufactured for on compacted XLPE Copper cable. They are made from 99.9%+ cu IACS high conductivity copper which gives the best electrical properties possible. Because the copper is oxygen free, Thermofix’s Ferrules are capable of withstanding a continuous operating temperature of 155°C, which is well above normal capabilities of copper ferrules.
